COMMON LINES IN THE REST-FRAME ABSORPTION-LINE SPECTRA OF QSOs ?
Varshni,Y.P., Singh,D.: 1985, Astrophys.Space Sci., 109, 149.
Also available in Adobe Acrobat PDF format.
Libby et al. (1984, AJ., 89, 311. online)
have studied the absorption-line data for 13 QSOs
in the rest frames of the QSOs. It is shown that the number of groups
in which 5 lines or more lie within a wavelength interval of 1 Å found
by these authors is insignificantly different from that that would be
expected from chance coincidences. Consequently, there is no evidence
that the rest-frame wavelengths at which these groups occur have any
In a recent paper,
Libby et al. (1984)
(hereafter referred to as LRL) have compared the
absorption-line spectra of 13 QSOs. Assuming the redshift hypothesis, for each QSO,
these authors converted the observed wavelengths to the rest-frame of the QSO by
blueshifting them by the emission redshift. A comparison of these rest-frame
wavelengths showed that 55 lines each occur in five or more QSOs within a wavelength
interval of 1.0 Å or less. To estimate the probability that this agreement is chance, LRL
generated random number spectra (nonsense spectra) for each QSO as follows : suppose
in any QSO spectrum in the rest-frame, there are N1 absorption lines shortward of Lyman alpha
in a wavelength interval delta Lambda1 and there are N2 lines longward of Lyman alpha in a wavelength
interval delta Lambda2, then in the random number spectra the same number of lines were
generated in the same wavelength intervals on the two sides of Lyman alpha. Using several sets
of nonsense spectra, LRL found an average of 13 ± 2 random groups with 5 or more
lines within a wavelength interval of 1.0 Å. Taken at face value, these results indicate
that the number of coincidences found in the observed rest-frame spectra is significant.
This implies the following : (1) the redshifts have physical significance; (2) if one assumes
the cosmological interpretation of redshifts, then a substantial number of absorption
lines are not random, that is they are not principally caused by absorption in clouds
randomly distributed between each QSO and the Earth but instead are caused by
substances intrinsic in each QSO.
One of us has questioned the existence of redshifts in the spectra of QSOs and has
proposed an alternative explanation (Varshni,
Varshni and Lam, 1976)
It is obvious that if the results of LRL are correct, these
provide evidence against Varshni's theory. Also, if one assumes the cosmological
redshift hypothesis, the results of LRL, if correct, clearly point to the intrinsic origin for
the absorption lines of QSOs.
Thus it was of considerable interest to closely examine the results of LRL.
2. The Coincidences Found by LRL
We shall use the same data as those used by LRL
(Roberts et al., 1978;
Sargent et al., 1979;
Young et al., 1979,
Sargent et al., 1982),
and shall assume the redshift hypothesis.
The following analysis is all on the wavelengths in the rest-frames of QSOs.
LRL state that there are 55 groups in which 5 lines or more lie within a wavelength
interval of 1.0 Å and they have listed these groups in their Table I. A close examination
of these groups, however, shows that five of these have a width greater than 1.0 Å.
These five groups are
(1139.5, 1139.0, 1138.3, 1138.7, 1138.9),
(1180.66, 1181.45, 1181.59, 1181.74, 1181.19),
(1243.0, 1243.2, 1243.4 , 1244.2, 1243.9),
(1255.9, 1254.9, 1255.4, 1254.3, 1255.0), and
(1287.1, 1287.4, 1286.4, 1287.4, 1287.8).
Clearly these should be eliminated. That leaves us with 50 groups.
An analysis of the data for the 13 QSOs shows that there are a total of 171 groups
which have 5 lines or more within 1 Å.
These groups are not all independent. Many of them have common lines with neighbouring groups.
LRL have selected 50 out of these 171 but they have not given the rules that
they used in selecting these 50. We have used the following rules which appear to be
logical and reasonable.
Using these rules we find 45 groups with 5 lines or more within a wavelength interval
of 1.0 Å. Thus we were able to reproduce LRL result except for a difference of 5. This
difference arises because LRL have included groups in their list which are excluded by
the corollary to rule 1 above. However, this difference of 5 is not important. So long
as one follows the same set of rules in analysing the real spectra and nonsense spectra,
the significance of groups found in the real spectra can be assessed.
- Groups with n lines are more important than those with (n - 1) lines.
Thus, one selects groups with 10, 9, 8, 7 , ... lines (in this order). A corollary of this rule is that
it is better to have one group of 6 lines than to have two with 5 lines each. Suppose there
is a sequence of lines Lambda1 ... Lambda10 such that Lambda1 to Lambda6
lie within 1 Å and Lambda6 to Lambda10 also lie within 1 Å.
The problem is how to apportion the lines. Should one form one group of
Lambda1 to Lambda6 or two groups of
Lambda1 to Lambda5 and Lambda6 to Lambda10 ?
To be consistent with rule 1, the former possibility was followed.
- If a line falls within the 1 Å width of a group, and if this group is selected, then
the line in question cannot be included in another group.
3. Repetition of the Work of LRL
We have generated 10 nonsense spectra using the same procedure as that used by LRL.
Further, to simulate the resolution of the real spectra it was constrained that
delta LambdaNmin > = delta Lambdamin,
where delta LambdaNmin and delta Lambdamin are the minimum line spacings in the nonsense
and actual spectra, respectively. On analysing these spectra by rules given in Section 2,
the numbers of groups having 5 or more lines within a wavelength interval of 1.0 Å were
found to be 35, 39, 40, 40, 42, 41, 33, 36, 38, and 41. Thus the average is 38.5 ± 2.8,
which is much higher than 13 ± 2, the value reported by LRL. It is possible that there
was a serious error in the computer program of LRL.
4. Line Densities
There is another factor that LRL have not considered carefully; namely, the density
distribution of lines, in generating their nonsense spectra. The density of lines plays a
very important role in determining chance coincidences
(Russell and Bowen, 1929;
Russell et al., 1944;
In Figure 1(a)-(c) we show
the line-density function for the spectra of 13 QSOs under consideration. These were
obtained by convoluting the actual line distribution with gaussians of half-width
w = 10 Å: i.e.,
f(lambda) = ------------ /_ exp [ -(Lambda - Lambdan)^2 / w^2]
N w sqrt(pi) n=1
Here, Lambdan are the wavelengths of the N lines in the spectrum of the QSO being considered.
This procedure destroys information about the line positions on a scale deltaLambda < 2w
while retaining the distribution on scales larger than 2w.

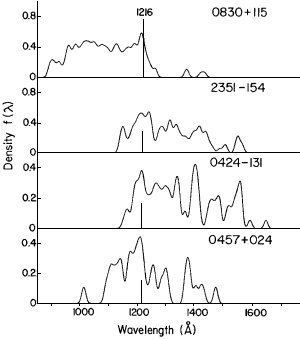

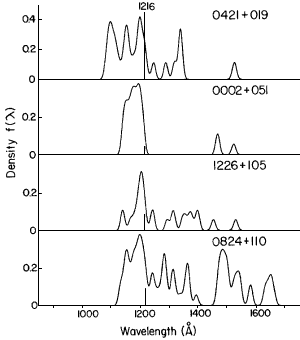

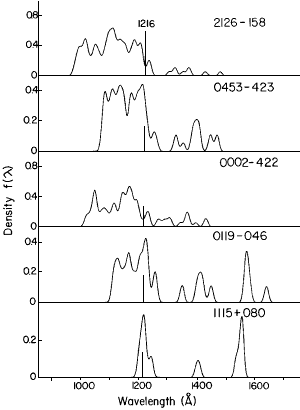

Fig.1 (a)-(c): Line distribution, f(Lambda), as a function
of the wavelength for the 13 QSOs. The position of Lyman alpha is
It will be noticed in Figure 1(a)-(c) that the density of lines varies considerably over
the length of the spectrum for most of the QSOs. The assumption by LRL that each
spectrum can be divided in two parts (at 1216 Å) with flat distributions on either side
can only be considered a first approximation and is not fully satisfactory.
Ghost Spectra and Results
We have generated ghost spectra for 1O sets of these 13 QSOs using a random number
generator on a computer. A ghost spectrum is defined as a nonsense spectrum which
simulates the real spectrum of an object in all its statistical characteristic features, but
can be clearly distinguished from it (cf.
For each QSO the ghost spectra
were generated using its line density function shown in Figure 1(a)-(c) and it was
constrained that deltaLambdaGmin > = deltaLambdamin,
where deltaLambdaGmin is the minimum line spacing in the ghost spectrum.
These ghost spectra were analysed using the rules given in Section 2. It was found
that the number of groups having 5 or more lines within a wavelength interval of 1.0 Å
in the ten cases are 40, 38, 41, 46, 37 , 42, 43, 39, 40, and 43. Thus the average is
40.9 ± 2.5 as compared to 45 for the real spectra. The improvement over the previous
result is small and it is readily understandable. Most of the coincidences (about 90 percent) occur
at Lambda < 1216 Å and in this region the flat spectrum approximation is a reasonable one.
The present investigation clearly shows that the number of groups found by LRL is
insignificantly different from that that would be expected from chance coincidences.
Thus, there is no evidence to suggest that the coincidences in rest-frame absorption-line
wavelengths found by LRL have any physical significance. It further follows that there
is no evidence to support the two consequences resulting from LRL's work, referred to
in the Section 1.
This work was supported in part by a research grant from the
Natural Sciences and Engineering Research Council of Canada
Libby,L.M., Runcorn,S.K., Levine,L.H.: 1984, Astron.J., 89, 311.
Roberts,D.H., Burbidge,E.M., Burbidge,G., Crowne,A.H., Junkkarinen,V.T., Smith,H.E.:
1978, Astrophys.J., 224, 344.
Russell,H.N., Bowen,I.S.: 1929, Astrophys.J., 69, 196.
- Russell,H.N., Moore,C.E., Weeks,D.W.: 1944, Trans.Am.Phil.Soc., 34, 111.
Sargent,W.L.W., Young,P.J., Boksenberg,A., Carswell,R.F., Whelan,J.A.J.: 1979, Astrophys.J., 230, 49.
Sargent,W.L.W., Young,P., Boksenberg,A.: 1982, Astrophys.J., 252, 54.
Varshni,Y.P.: 1973, Bull.Am.Phys.Soc., 18, 1384.
Varshni,Y.P.: 1974a, Bull.Am.Astron.Soc., 6, 213,
Varshni,Y.P.: 1974b, Astrophys.J., 193, L5.
Varshni,Y.P.: 1974c, Bull.Am.Astron.Soc., 6, 449.
Varshni,Y.P.: 1975a, Astrophys.Space Sci., 37, L1.
Varshni,Y.P.: 1975b, Astrophys.J., 201, 547.
Varshni,Y.P.: 1977a, Astrophys.Space Sci., 46, 443.
Varshni,Y.P.: 1977b, J.Roy.Astron.Soc.Canada, 71, 403.
Varshni,Y.P.: 1978, in S.Fujita (ed.), The Ta-You Wu Festschrift..Science of Matter, Gordon and Breach, New York, p.285.
Varshni,Y.P.: 1979, Phys.Canada, 35, 11.
Varshni,Y.P.: 1981, Astrophys.Space Sci., 74, 3.
Varshni,Y.P.: 1982, Spec.Sci.Tech., 5, 521.
Varshni,Y.P.: 1983, Sov.Astron.Lett., 9, 368.
Varshni,Y.P., Lam,C.S.: 1976, Astrophys.Space Sci., 45, 87.
Young,P.J., Sargent,W.L.W., Boksenberg,A., Carswell,R.F., Whelan,J.A.J.: 1979, Astrophys.J., 229, 891.
Young,P., Sargent,W.L., Boksenberg,A.: 1982, Astrophys.J., 252, 10.
